Simple description：
Danco roll to roll Coating Machine has excellent performance and simple operation. It is equipped with arc sputtering system, which can be used for vacuum deposition of thin films and coatings.

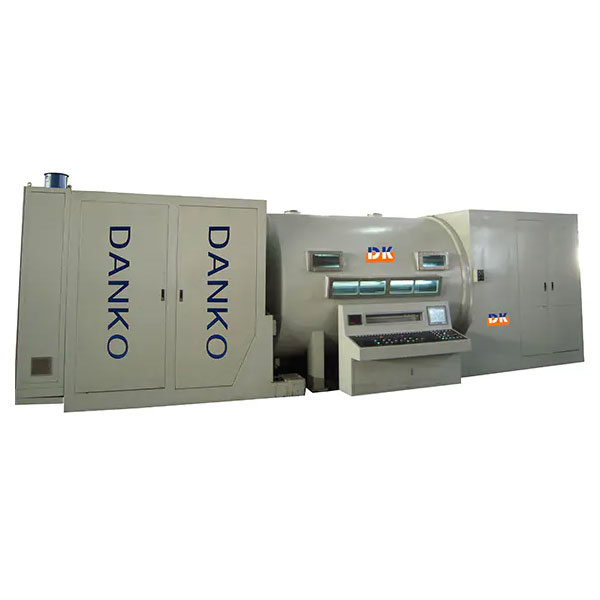

Product master drawing：

Product labeling：
Coating Machine/Thin Film Deposition System/Ion Coating Machine/Roll to roll Coating Machine

Product details:
Arc ion coating machine is a high efficiency,harmless and pollution-free equipment.It has features of fast deposition rate, great ionization rate, large ion energy,easy operation,low cost and large productive capacity etc.
The principle of vacuum electric arc ion coating is based on cold cathode, self-sustained arc discharge plasma evaporation, ionization material, combine pulsed bias technical to improve the energy and activity of deposited particles,and enhance the properties of coating. It can deposit coatings on the surface of metal as well as non-metal.lt can be used for metal film,TiN,TiC,ZrN,CrN,Nickle,Cr and Cu ect. Other compounds film, multi-layer super-hard film, multi-compounds film and titanium nitride with gold film as well.This machine is extensively used for super-hard coating on tools and mould,decorative coatings on car wheel,golf,watches,hard wares,lamp,glasses frame,ceramic and glass.
Our company is improving arc evaporation source of arc ion coating machine,at the same time, we are developing rectangular flat arc evaporation source, and it has been installed into new machines.
The company can design vacuum coating machines of various specifications and models according to user requirements. The vacuum unit and electric control system can also be designed and configured according to user requirements.

Product parameters：
Substrate materials: glass, metal, ceramic, glass, metal (carbon steel, stainless steel, brass), ceramic, plastic, jewelry.
Recommended machine: multi arc magnetron sputtering electroplating machine
Structure type: vertical structure, #304 stainless steel
Coating: multifunctional metal film, composite film, transparent conductive film, reflectivity increasing film, electromagnetic shielding film, decorative film
Film color: gold, rose gold, silver, color, sapphire blue, gun black, brown, dark black, etc
Film types: tin, CrN, ZrN, TiCN, TiCrN, tinc, TiAlN and dlcd.
Consumables in production: titanium, chromium, zirconium

Product use：
Clock and watch industry, hardware, construction industry, telephone shell, accessories, jewelry, glasses frame, glassware, tableware, golf goods, bathroom products, large-size sheets, plates, pipes, pipes, etc.

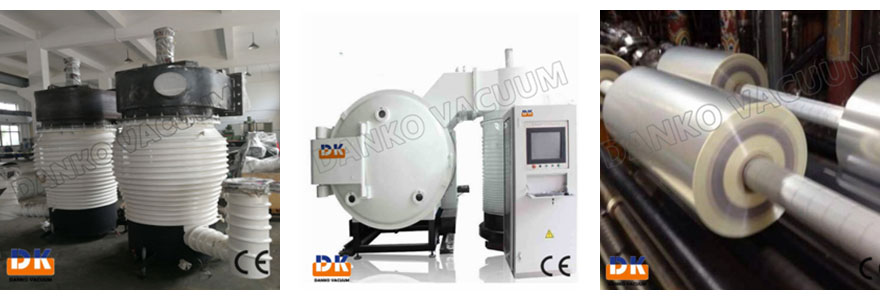

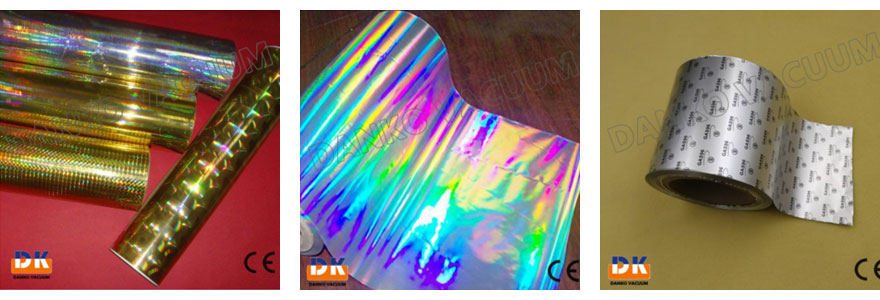

Product picture：

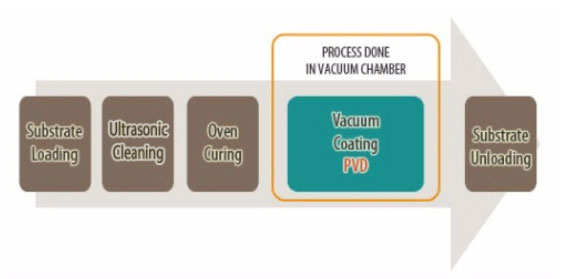

Production process：


Quality control：
Equipment data weight: 20t
Power: 370kW / voltage: 380V
Film forming specifications: Gold Titanium, black titanium carbide, color titanium dioxide, wear-resistant film, super hard film, diamond film, metal decorative film
Structure: vertical front door opening structure (double-layer water tank cooling or cooling water jacket), rear exhaust system
Substrate: flexible circuit board, flexible material, etc
Chamber material: stainless steel or carbon steel
Maximum air pressure: 5 * 10-4Pa
Gas time: within 30 minutes
Control system: manual, semi-automatic, full-automatic
Operating system: touch screen + PLC

Video display：
https://youtube.com/shorts/VvULtddW5ko?feature=share

Product advantages：
Fast film formation and deposition speed;
No waste any gas or liquid. Stable operation and good vacuum performance
Customized processing services
High standard quality control
