PET Film PVD Coating Machine
Machine Feature:
-“free span” and “drum touch” metalizing system ensure no light line, no wrinkle, no aluminum sputtering, no films slippery. -Main drum and sub drum, two stages cooling syetem, ensure better cooling effect and no deformation. -Four SIEMENS motor matched with four SIEMENS inverter for winding system, which maximum ensure tension steady, even if power off, could second time metalizing.
Control system:
-SIEMENS integrated control system, HMI, PLC control, SIEMENS s7, PROFINET module system. -Higher precision digital power adjustor. -PLC control wire feeding system, more stable, more precise, better uniformity. -Online coating thickness detecting system, ensure coating quality.
Vacuum system:
-Adopt international famous brand vacuum pump such as Germany Leybold or Chinese best brand pump. Make sure vacuum faster, less power consumption(All pumps and polycold could be European brand as per customer requirement). -Equips two Polycold separately for winding and evaporating chamber, suitable for any environment.
MACHINE CONFIGURATION:
Max width size |
1350mm |
1750mm |
2100mm |
2500mm |
3000mm |
Max rolling diameter |
800mm |
1000mm |
|||
Evaporation boats |
16 pieces |
20 pieces |
24 pieces |
30pieces |
35pieces |
Evaporation pressure |
8×10-2pa(8×10-4mbar) |
||||
Water consumption |
20m3/h |
25m3/h |
35m3/h |
40m3/h |
45m3/h |
Average power consumption |
180KW |
260KW |
280KW |
300KW |
330KW |
Metallized material |
PET:10-50; CPP: 20-60; BOPP: 15-60;(µm) |
||||
Max winding speed |
800m/min |
1000m/min |
|||
Monthly output |
250T |
400T |
550T |
650T |
750T |
Control mode |
Manual/Semi-automatic/Automatic, PLC touch screen |
||||
Remark |
The dimension of the vacuum chamber can be customized |
||||
APPLICATION:

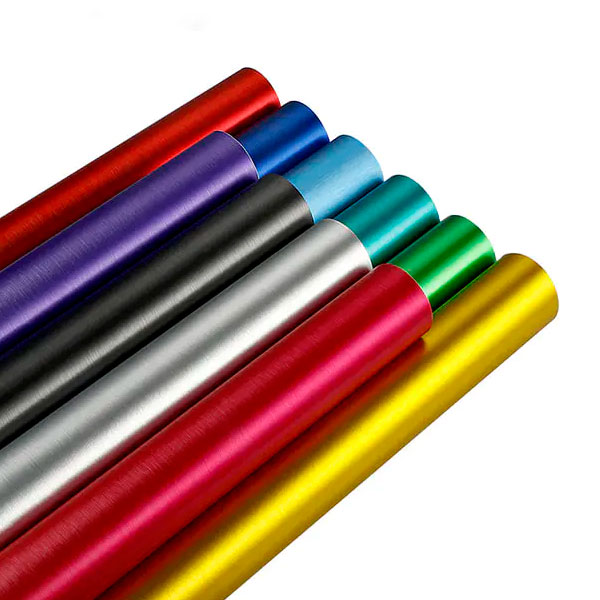

For metallizing BOPP, PET, PVC, PE, CPP and other vacuum aluminum, metallized paper, aluminum and other thin films for tobacco package paper, food packaging, pharmaceutical packaging, label printing, daily necessities, gift packaging, Christmas pull flower printing and other fields, such as:
• PET twist
• VMPET aluminum twist
• VMCPP aluminized
• PET film
• VMPET matt aluminum film
• PET special film
• PET pipe aluminized
• PVC film aluminized
AFTER-SALES SERVICE & SUPPORTING:
Danko Vacuum Systems and our global service partners can provide onsite installation, repair service, preventative maintenance, applications and service training. We are available to provide support for your system 24/7. Free warranty for full equipment for 12 months. Long term providing the target, vacuum materials and accessories at reduced prices. Providing vacuum coating machine operation and training of personnel at site. Danko Vacuum Technology is professional China PET film PVD coating machines manufacturers and custom PET film PVD coating machines company ,including but not limited to Sputtering Systems, Optical Coating Units, Batch Metallizers, Physical Vapor Deposition (PVD) Systems, Hard and Wear Resistant Vacuum Coating Deposition Equipment, Glass, PE, PC Substrate Coaters, Roll-to-Roll Machines for coating flexible substrates. our PET film PVD coating machine are used for a wide range of applications described below (but not limited to) Automotive, Decorative, Hard coatings, Tool & Metal Cutting coatings, and thin film Coating applications for industrial and Laboratories including Universities.Danko Vacuum Technology Company Ltd is committed to expand our market boundaries by providing high-quality, high-performance PET film PVD coating machine.
