Horizontal PVD Vacuum Coating Machine for Stainless Steel Frame of Furniture
Simple description:
Danko horizontal furniture stainless steel frame coating machine has excellent performance and simple operation. It is equipped with arc sputtering system, which can be used for vacuum deposition of films and coatings.

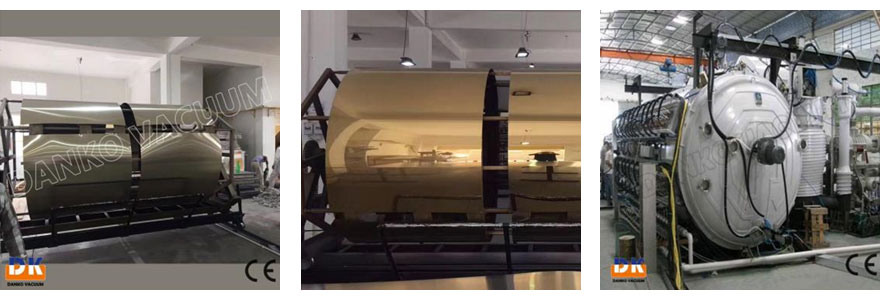

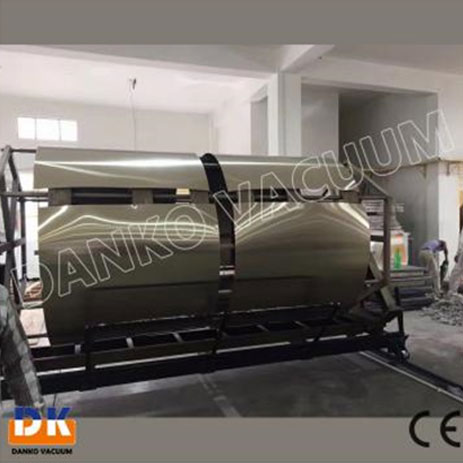

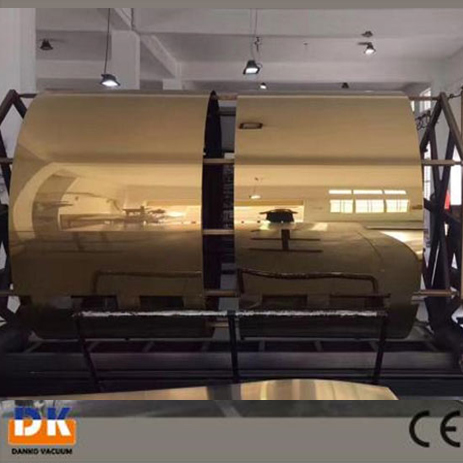

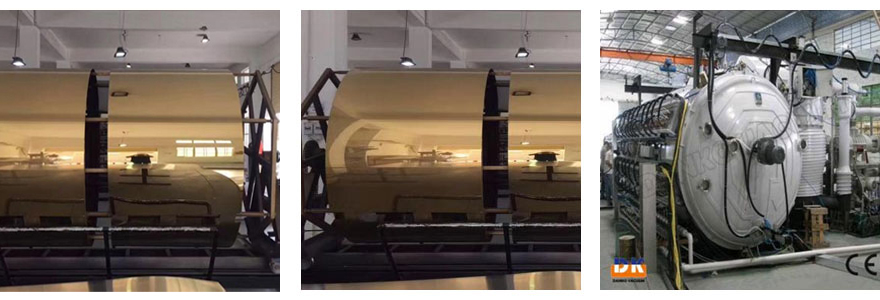

Product master drawing:
Product labeling:
Coating Machine/Thin Film Deposition System/Vacuum Metallizing Machine/Horizontal Coating Machine
Product details:
Arc ion coating machine is a high efficiency,harmless and pollution-free equipment.It has features of fast deposition rate, great ionization rate, large ion energy,easy operation,low cost and large productive capacity etc.
The principle of vacuum electric arc ion coating is based on cold cathode, self-sustained arc discharge plasma evaporation, ionization material, combine pulsed bias technical to improve the energy and activity of deposited particles,and enhance the properties of coating. It can deposit coatings on the surface of metal as well as non-metal.lt can be used for metal film,TiN,TiC,ZrN,CrN,Nickle,Cr and Cu ect. Other compounds film, multi-layer super-hard film, multi-compounds film and titanium nitride with gold film as well.This machine is extensively used for super-hard coating on tools and mould,decorative coatings on car wheel,golf,watches,hard wares,lamp,glasses frame,ceramic and glass.
Our company is improving arc evaporation source of arc ion coating machine,at the same time, we are developing rectangular flat arc evaporation source, and it has been installed into new machines.
The company can design vacuum coating machines of various specifications and models according to user requirements. The vacuum unit and electric control system can also be designed and configured according to user requirements.
Product parameters:
Substrate materials: glass, metal, ceramic, glass, metal (carbon steel, stainless steel, brass), ceramic, plastic, jewelry.
Recommended machine: multi arc magnetron sputtering electroplating machine
Structure type: vertical structure, #304 stainless steel
Coating: multifunctional metal film, composite film, transparent conductive film, reflectivity increasing film, electromagnetic shielding film, decorative film
Film color: gold, rose gold, silver, color, sapphire blue, gun black, brown, dark black, etc
Film types: tin, CrN, ZrN, TiCN, TiCrN, tinc, TiAlN and dlcd.
Consumables in production: titanium, chromium, zirconium
Product use:
Clock and watch industry, hardware, construction industry, telephone shell, accessories, jewelry, glasses frame, glassware, tableware, golf goods, bathroom products, large-size sheets, plates, pipes, pipes, etc

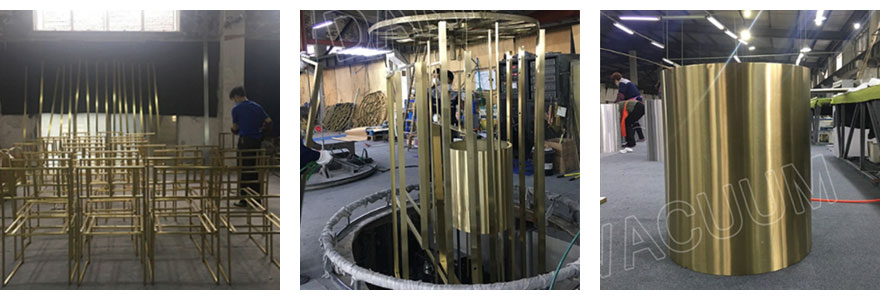

Product picture:

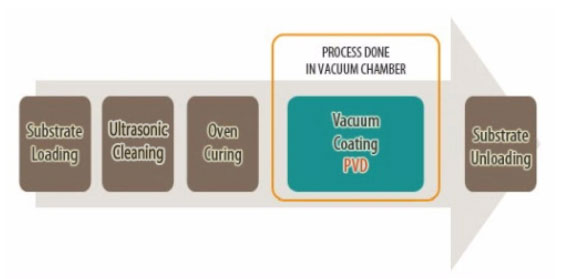

Production process:
Quality control:
Pump: mechanical pump + roots pump + diffusion pump + heat preservation pump (or optional: cryogenic pump, cryogenic pump system)
Gas system: 1-4 pathc
Limited vacuum: 6 * 10-4Pa (clean room, no-load)
Target: arc 6-18 groups, magnetron target 1-2 groups
Power supply: DC power supply, medium frequency power supply, medium frequency power supply, heater power supply, activation power supply, pulse bias voltage power supply
Target: DC magnetic target, medium double target, plane target
Gas time: 5 * 10-4Pa, within 30 minutes
Manual control, semi-automatic, fully automatic, PLC control
Video display:
https://youtu.be/9p_KR2wrqo4
Product advantages:
Fast film formation and deposition speed;
Beautiful color and good distribution
No waste any gas or liquid. Stable operation and good vacuum performance
Customized processing services
High standard quality control
